1/2" DR. 12PT Metric Standard Socket KING TONY 4330MR
1/2" DR. 12PT Metric Standard Socket KING TONY 4330MR
1/2" DR. 12PT Metric Standard Socket KING TONY 4330MR
1/2" DR. 12PT Metric Standard Socket KING TONY 4330MR

4330MR

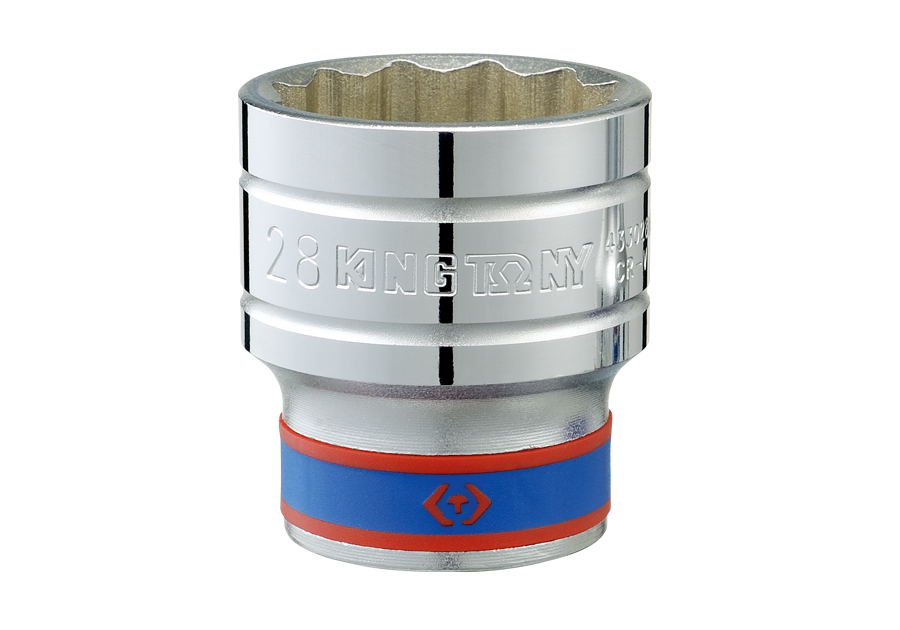

1/2" DR. 12PT Metric Standard Socket

  • Chrome vanadium alloy steel
  • polished, chrome plated
  • 4 ball retaining grooves
  • DIN 3124, ISO 2725-1
360° view
360° view
PDF
  1. Share
QRcode-4330MR-1/2" DR. 12PT Metric Standard Socket

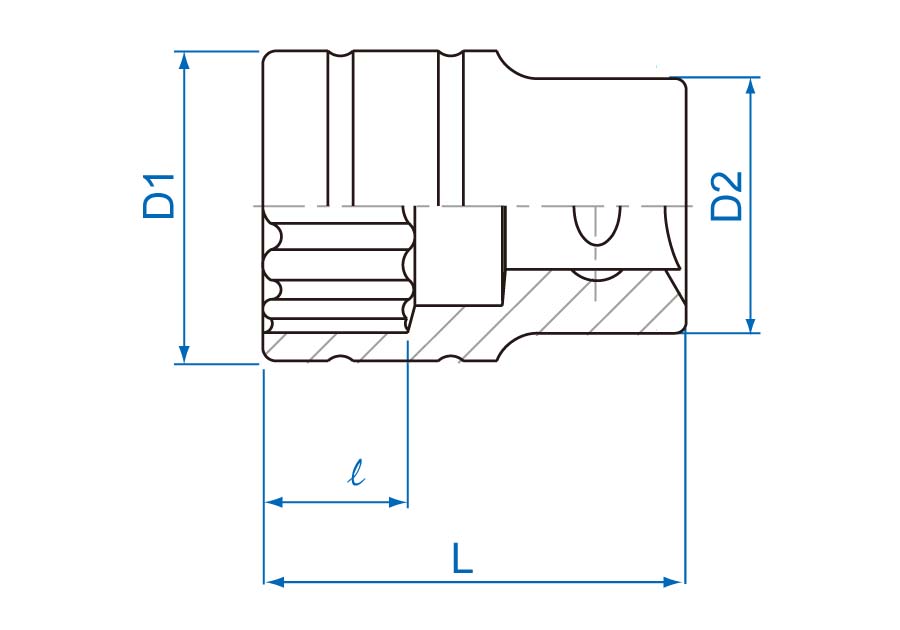

Item
8 13.2 23.3 7.0 38 53 10 / 200
9 14.0 23.3 7.0 38 52 10 / 200
10 15.0 23.3 8.0 38 51 10 / 200
11 16.4 23.3 8.0 38 54 10 / 200
12 17.8 23.3 9.0 38 54 10 / 200
13 19.0 23.3 10.0 38 58 10 / 200
14 20.4 23.3 11.0 38 60 10 / 200
15 21.6 23.3 11.0 38 61 10 / 200
16 22.5 23.3 11.0 38 61 10 / 200
17 24.0 23.2 12.0 38 62 10 / 200
18 25.2 23.2 13.0 38 69 10 / 200
19 27.0 23.2 13.0 38 72 10 / 160
20 27.9 23.2 13.0 38 74 10 / 160
21 28.9 23.2 14.0 38 78 10 / 160
22 30.2 24.0 15.0 40 90 10 / 160
23 31.2 25.0 15.0 40 92 8 / 160
24 32.1 26.0 17.0 42 101 8 / 160
25 33.4 27.0 17.0 42 107 8 / 160
26 35.0 28.0 17.0 42 125 6 / 120
27 36.6 28.0 19.0 42 130 6 / 120
28 37.8 30.0 20.0 42 142 6 / 120
29 39.0 30.0 21.0 44 161 6 / 120
30 40.0 29.5 21.0 44 156 6 / 120
32 42.5 30.0 23.0 44 163 6 / 120
33 43.0 30.0 24.0 46 173 6 / 96
34 45.0 30.0 24.0 46 207 6 / 96
36 47.0 33.0 24.0 46 136 6 / 96
